V16 Intergrated Distribution Box uses the whole steel structure and the box inside marshalls Zero Hole and Earth Hole equal to the distribution box digit. Multi-rail set uo connection poles to achieve all installation rails whole enclosing and extraction. Meanwhile, diffrent ply pads can be assembled between the rail and the plate to satisfy with the installation meet of diffrent height and sized of circular breakers.
Model No. | L | W | H | a | b |
V16/1 x 13 | 283 | 363 | 115 | 230 | 180 |
V16/2 x 13 | 388 | 363 | 115 | 230 | 250 |
V16/3 x 13 | 538 | 363 | 115 | 230 | 380 |
V16/4 x 13 | 688 | 363 | 115 | 230 | 540 |
V16/1 x 18 | 283 | 483 | 115 | 350 | 180 |
V16/2 x 18 | 388 | 483 | 115 | 350 | 250 |
V16/3 x 18 | 538 | 483 | 115 | 350 | 380 |
V16/4 x 18 | 638 | 483 | 115 | 350 | 540 |
V16/5 x 18 | 838 | 483 | 115 | 350 | 540 |
KRIPAL Distribution Box

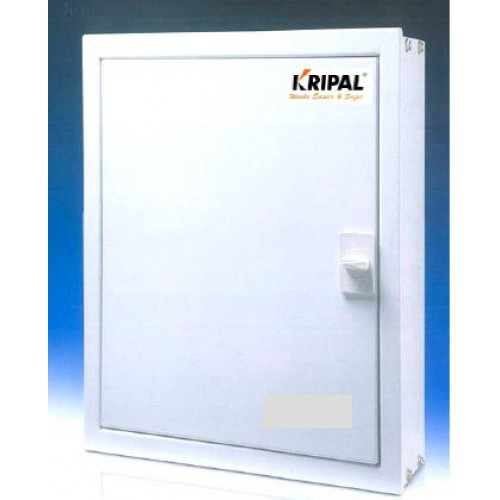

V16 Metal Distribution Box
- Brand: KRIPAL
- Product Code: V16 Metal Distribution Box
